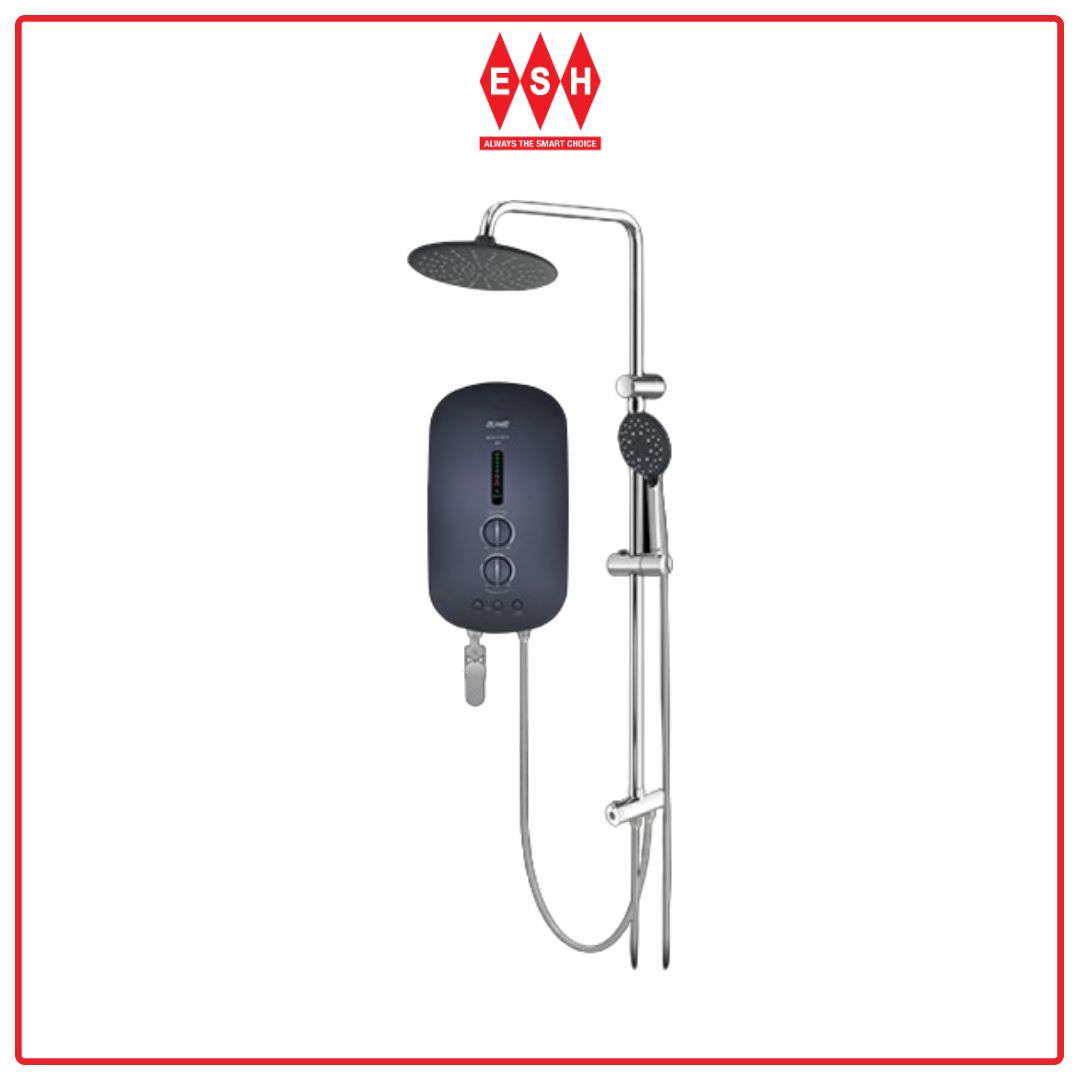

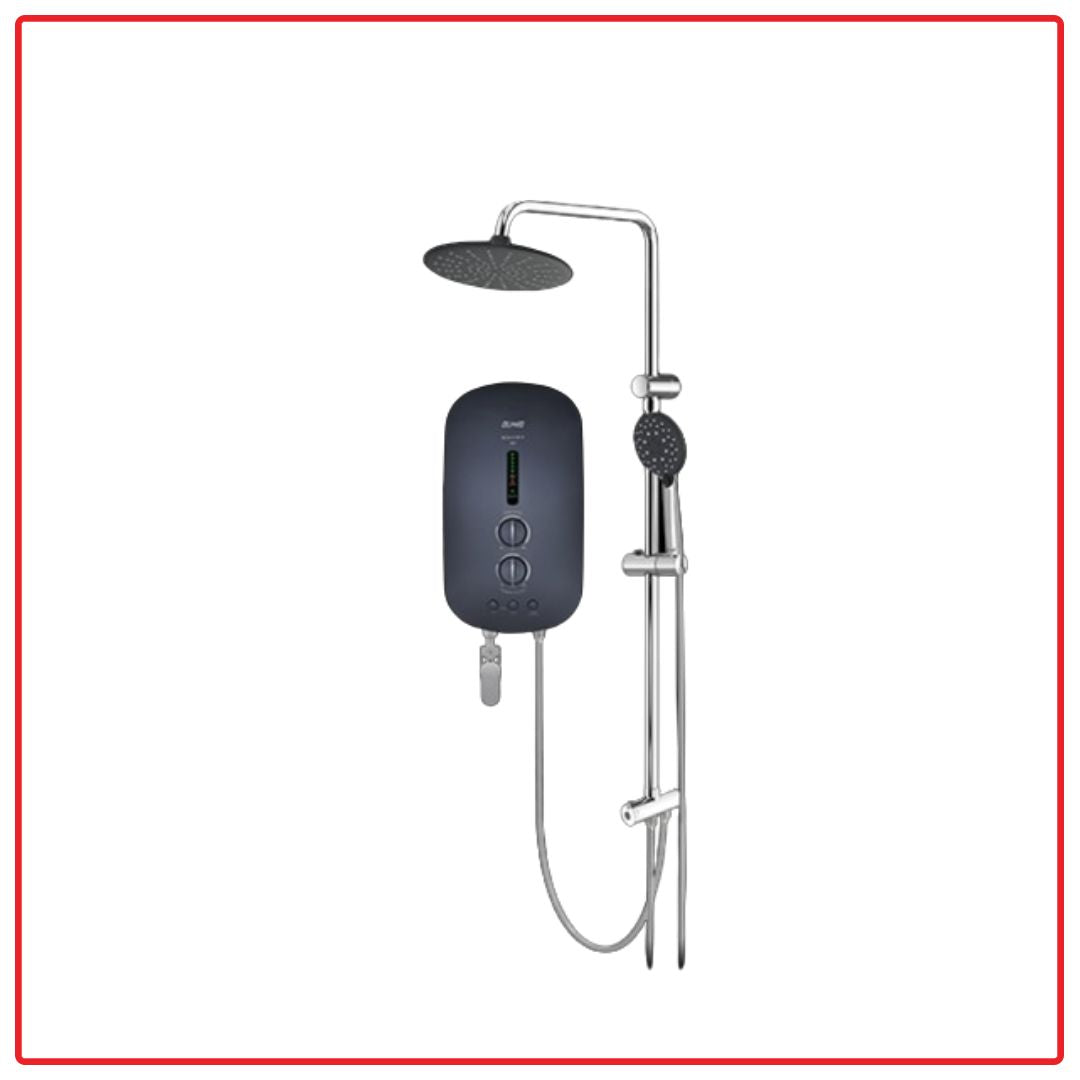

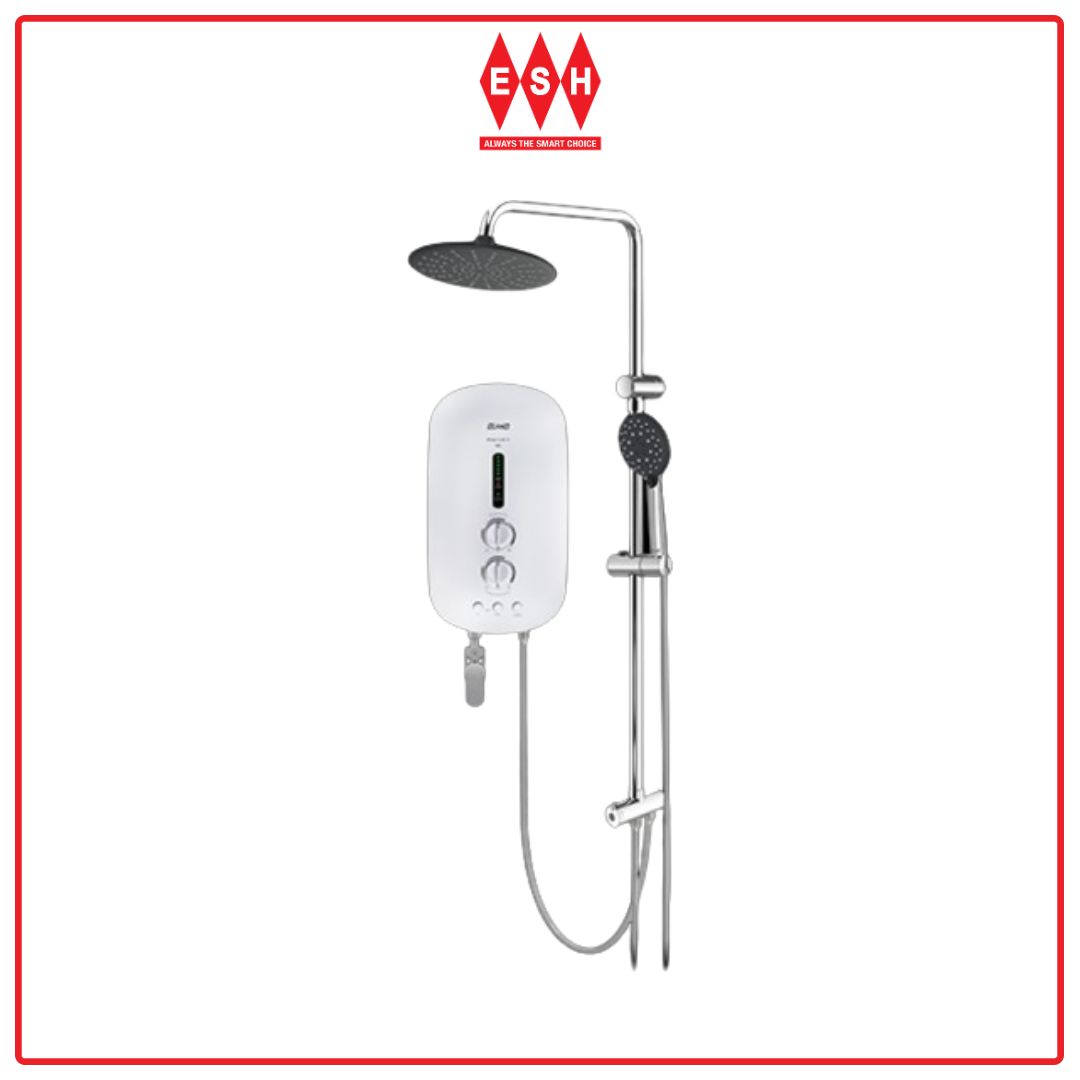

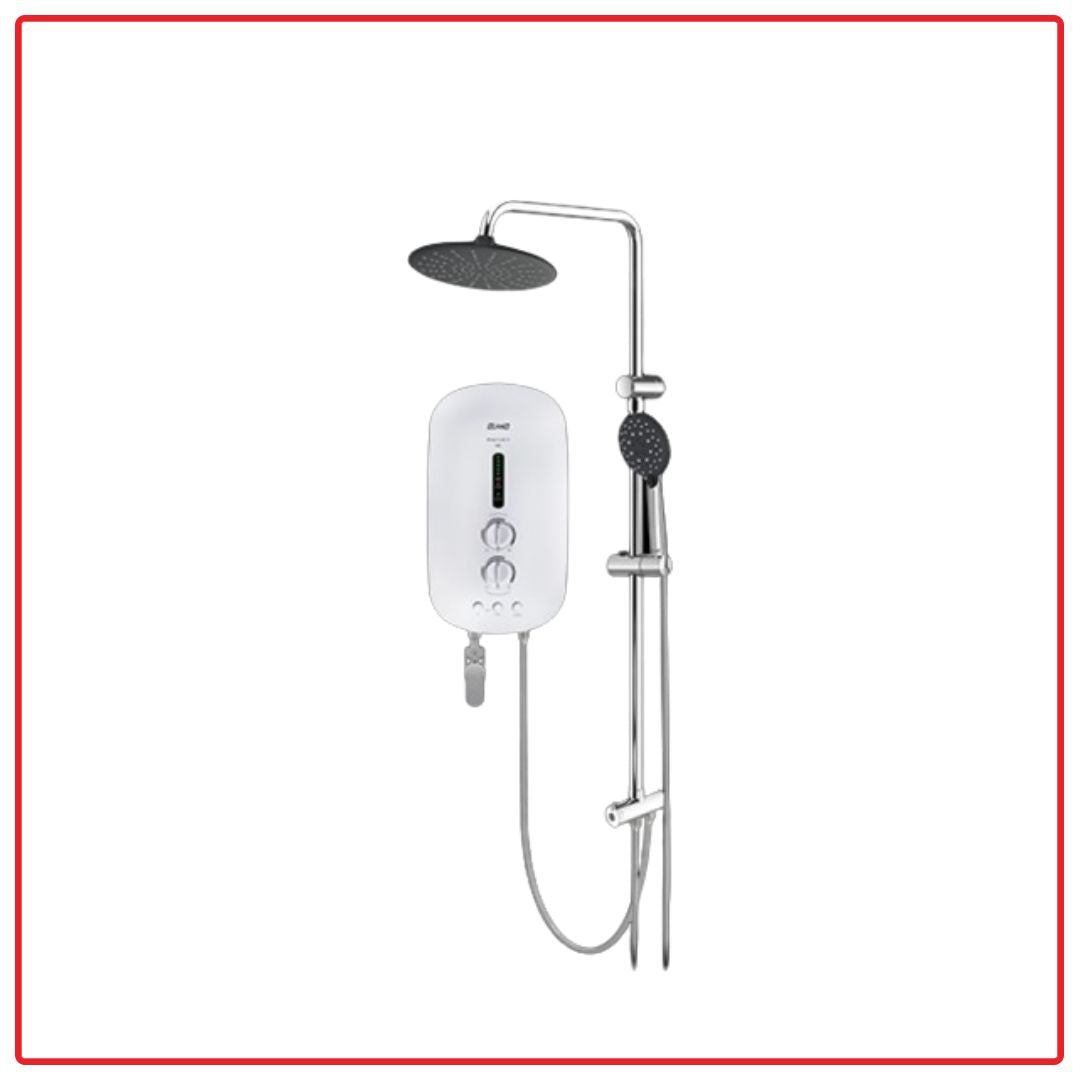

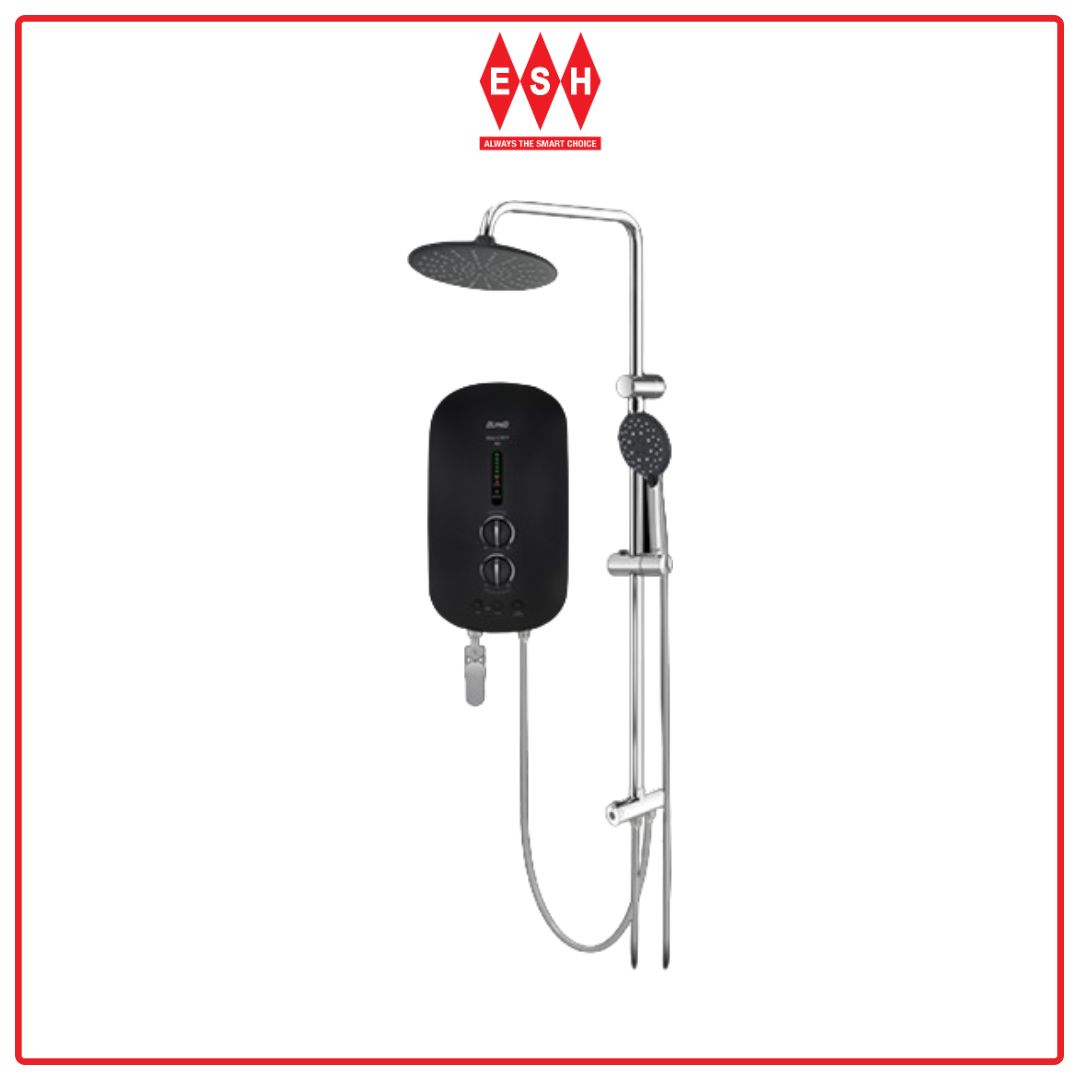

Alpha Instant Shower Heater - S18i.PLUS.R/S
SMART will run a self-test on the internal curcuit to check if there is any leakage on all electric components & parts.
LINE FAULT INDICATOR
To checks your home's wiring status and detects any improper electrical connection.
It will be alerted with the indicator light changing from green to red.
DOUBLE RELAY ELCB
In case of electricity surges, both live and neutral current flows will be cut off, ensuring your safety at multiple levels.
SAFETY THERMAL CUT-OFF
Automatic & Overload Temperature Control System automatically breaks off power supply if the is abnormal rise in shower temperature.
The casing is designed to provide protection against water seeping into the heater's internal mechanism.
NYLON FIBRE INTERNAL
The internal of the heater is build with this strong & durable non-conductive material for futher insulation against electric shock.
Powerful water delivery with maximum energy savings, maintenance free usage and true silent operation.
- Pump Type - DC Pump
- Pump Rating - 55W
- Noise Level <40dB
- Heater Power Rating - 3.6kW 240V~ 50Hz
- Water Connection - 15mm (1/2” BSP), Single Point System
- Operating Condition - Open Outlet
- Protection Against Electric Shock - Class 1
- Water Temperature Control - Electronics
- Degree of Protection - IP25
- Minimum Flow Rate - 3 Liters / Minute
- Minimum Pressure - 20kPa (0.2 bar / 2.9 psi)
- Maximum Inlet Pressure - 0.38 MPa (3.8 bar / 55psi)
- Heater Dimension - 230mm (W) x 413.50mm (L) x 91.30mm (H)
- Nett Weight - 2.0 Kg
- Gross Weight - 4.0 kg
- Motor Type - DC Inverter
- Power Rating - DC Inverter - 55W
- Noise Level - DC Inverter - <40dB
